Description
DMX decoder for low voltage circuits. With 4 output channels, this unit is ideal for controlling RGBW, RGB or single colour LED Strip.

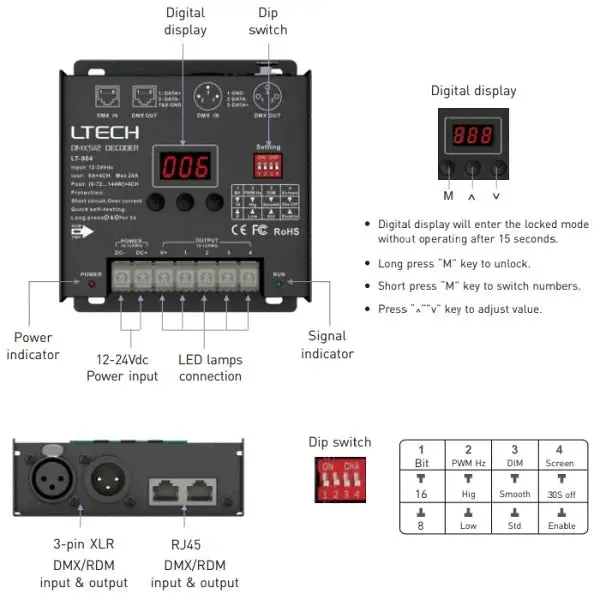

The decoder requires a low voltage input. It receives a DMX control signal from a suitable controller in order to supply the correct dimming output across 4 channels. DMX connects via standard XLR-3 or RJ45 plugs. The low voltage supply and lights connect via screw terminals on the side of the unit.
The decoder operates on a low voltage 12~24V DC circuit, providing a PWM output, ideal for dimming LEDs.
| Input signal | DMX512 |
|---|---|
| Voltage | 12v~24v |
| Output | DC Constant Voltage |
| Channels | 4CH |
| Current | Max 24A |
| Max output power | 288w/576w (12v/24v) |
| Dimensions (mm) | 122L 110W 37H |
